SCS-H350/SCS-H500/SCS-H600/SCS-H1100



More efficient, longer life, Low power consumption.

The same quantity of water, solar panels require less than using AC Pump, reduce user's cost, and even cheaper than AC water pumping system.

High speed digital signal processors DSP, high speed tracking, adapt changeable weather.

Protection: Full-water protection, Low-water protection and other protection against system damage.

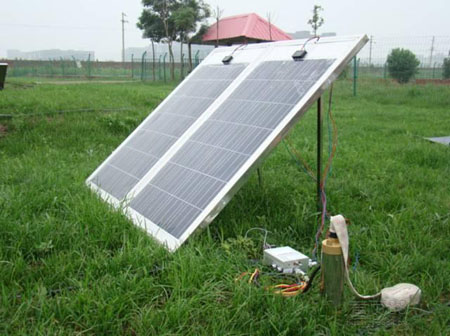

PV Water Pump system is highly efficient PV water system. Pump controller can directly drive various kinds of 3-phase brush less DC motor, especially the deep well pump, with high power integration and fewer components, which improves the system reliability.

This system is widely used in pumping water for home use ( drinking & washing ), farm; irrigating for garden, field, desert plants; watering for livestock, water treatment projects, etc.



	SSL-H350	SSL-H500	SSL-H600	SSL-H1100
Head of delivery	20-35m	35-50m	45-60m	60-100m
Daily water flow	2.8-1m³/h
System Power	280-350V DC
Pump Power	350W(0.5HP)	500W(0.75HP)	600W(0.8HP)	1100W(1.5HP)
Controller	750W	750W	750W	1500W
Solar power	810W	1080W	1170W	1800W
Weight	95kg	130kg	140kg	195kg
Temperature	-20℃~50℃
PH	6.5-8.0
