Digital Simultaneous Interpretation Unit


1. Digital audio processing and transmitting technology.
2. Up to 32 Channel audio signals transmitted on a dedicated 12P-DIN cable.
3. Interpreter consoles powered by the transmitter.
4. Voice adjustable and with prevention on feedback
5. Ensure that every channel is correspondent to the RELAY function respectively.
6. Delegates speak too fast; give a request for slow the speed.
7. Automatic numbering on system units
8. Prevention on interpreter's cough
9. LCD can display input and output channel


Model

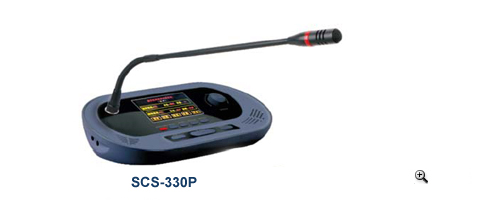

SCS-330P

HF input

Nominal 1 Vpp, minimum 10mVpp

Angle of half intensity

±22°

Total optical peak intensity

24 W/sr

Power consumption

Operating: 30W; Standby:25 W

Transmission distance

<30 meters/16 CH

Number of IREDs

312

Power supply

AC110V-220V ~ 50Hz-60Hz

Dimensions

445×235×113mm

Operating temperature range

0-40 degree

Mounting

Standard: Bracket, Option: tripod





PDF DOCUMENT DOWNLOAD

SCS-330P
