- Excellent metal wiredrawing craft, classic in black and streamlined faceplate
- Small in size, low in weight, solid in quality, economical and practical, convenient to transport
- With voice control ability，the voice can turn on microphone, it does not need to press the microphone button by hand
- Flush in installation, microphone rods can be taken down during the recess, it is nothing influence to the table top
- Pluggable and lock line microphone rods, it can be adjust the direction freely

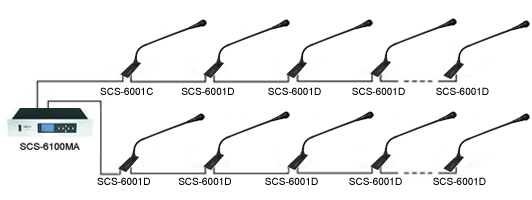

- Bring 2.1meters dedicated cable, increased reliability with “hand in hand” connection topology
- System with function of automatic restoration, support “PnP”(Plug-and Play)
- Chairman unit has priority to speak, it can close/ temporarily muting the delegate unit
- Super powers of anti-electromagnetic and mobile phone interference
- Microphone rods can be taken down during the recess, easy to maintain
- Humanization design. There is different length MIC rods to choose, it is suitable for different height attendances
-
Connect to camera can realize the function of camera auto-tracking

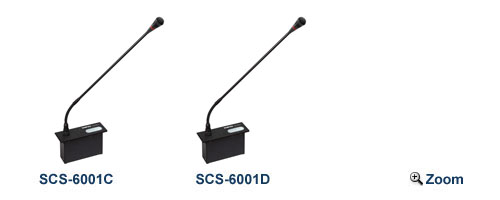

| Model | SCS-6001C/D |
| Power supply | DC24V supplied by the control host |
| Intercommunication | DIN 8-pole |
| Power consumption | 3W |
| Loudspeaker power | 1.2W |
| Transducer type | Electret condenser |
| Directional pattern | Cardioid |
| SNR | > 80dB |
| Crosstalk attenuation at 1k Hz | > 80dB |
| Distortion | <0.10% |
| Frequency response | 60~12KHz |
| Equivalent noise | ≈20dB SPL |
| Maximum SPL | 105dB(3% threshold) |
| Size | 124*44*136mm |
| Sensitivity | -22dBv/Pa |
