Fully Digital Flush-mounting Voting Unit

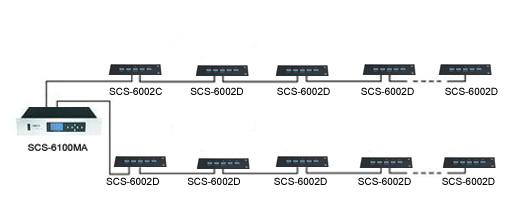

.Working with SCS-6100MA controller, provide system expansion up to 120 delegate units, can expand to 2000 delegate unites at most by working expansion host.
.Indirection at microphone with red ting indicator.
.The integrated loud speaker will automatically mute to avoid howling  when the microphone turns on.
.The active microphone can be limited in different numbers by setting in the front panel.
.Communicating in the hand-in-hand daisy-chain, easy installation and maintenance.
.Working with the control system to realize the function of camera auto-tracking.
.Voice Control: When the controller switched to voice control, the MIC can open ON automatic while the speaker begin to speak.
.Working with the control system to realize the function of camera auto-tracking.

.

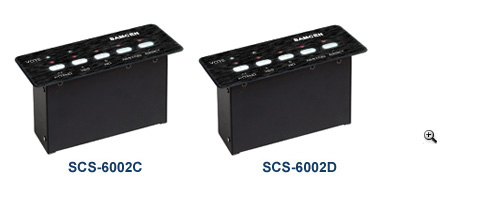

Model SCS-6002C/D
Power supply DC24V supplied by the control host
Intercommunication DIN 8-pole
Power consumption 3W
Loudspeaker power 1.2W
Transducer type Electret condenser
Directional pattern Cardioid
SNR > 80dB
Crosstalk attenuation at 1k Hz > 80dB
Distortion <0.10%
Frequency response 60~12KHz
Equivalent noise ≈20dB SPL
Maximum SPL 105dB(3% threshold)
Size 124*44*136mm
Sensitivity -22dBv/Pa





PDF DOCUMENT DOWNLOAD

SCS-6002CD
