Fully Digital Flush-mounting Discussion Unit

  1. With its artistic, taste and streamline design, able to fused together with any conference room
  2. Using the metal wiredrawing craft, makes it strong and durable, it seems on quite the scale
  3. Flush installation makes the meeting table more clean and tidy, presents rigorous and visual effect
  4. With voice control ability,the voice can turn on microphone, it does not need to press the microphone button by hand
  5. Condenser MIC core, with two colors indicator
  6. Power supply from main unit, 24V safety voltage input
  7. Built-in loudspeaker, earphone interface and volume adjustment button(when the microphone startup, the built-in loudspeaker will closes automatically)
  8. Bring 2.1meters dedicated cable, increased reliability with “hand in hand” connection topology
  9. System with function of automatic restoration, support “PnP”(Plug-and Play)
  10. Chairman unit has priority to speak, it can close/ temporarily muting the delegate unit
  11. Super powers of anti-electromagnetic and mobile phone interference
  12. Microphone rods can be taken down during the recess, easy to maintain
  13. Humanization design. There is different length MIC rods to choose, it is suitable for different height attendances
  14. LCD display shows congressional information and status of equipment Connect to camera can realize the function of camera auto-tracking

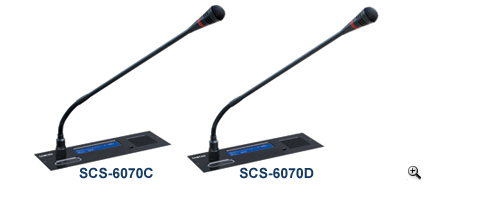

Model SCS-6070C/D
Power supply DC24V supplied by the control host
Intercommunication DIN 8-pole
Power consumption 3W
Loudspeaker power 1.2W
Transducer type Electret condenser
Directional pattern Cardioid
SNR > 80dB
Crosstalk attenuation at 1k Hz > 80dB
Distortion <0.10%
Frequency response 60~12KHz
Equivalent noise ≈20dB SPL
Maximum SPL 105dB(3% threshold)
Sensitivity -22dBv/Pa
