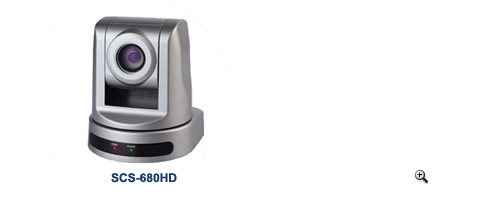

SCS-680HD HD conference camera


.Built-in zoom camera and decoder, integrated structure, smart outline, Pan: ± 170°, Tilt: - 30° ~ + 90°

.Support YPbPr and HDMI Video Output

.Max. pan speed: 160°/s; Max. Tilt speed: 120°/s

.Support up to 255 presets

.Communications:RS232/RS422, Infrared remote-controlling

.Protocol: VISCA

.Image flip function (decided by camera module)

.Multifunctional IR remote controller

.Support terminals of video conference camera from other manufacturers

.Support top-down mounting


Monitor Manual / time start-up setting
Preset speed Pan 160°/s, Tilt 120°/s
Orientation precision ± 0.05°
Rotation Pan ± 170°; Tilt -30° ~ + 90°
Speed Proportion Auto-adjust the speed as the length of focus
Preset Controller support 9 presets, RS232 support 255 presets
Sync Internal
Decoder Built-in
Video output RCA , S terminal
Remote controlling RS422/232
Baud rate(RS485) 9600bps
Temperature -10℃~+50℃
Humidity 0~95%(Non-condensation)
Dimension(L*W*H) 138 * 138 * 163 mm
Power supply DC 12V ± 1V
Power consumption 12W
Weight 1.2kg





PDF DOCUMENT DOWNLOAD

SCS-680HD
