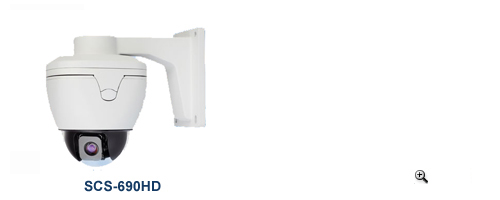

SCS-690HD High Definition Camera


.Integrated and handle fast installation
.Support YPbPr Video Output
.Built-in heating and radiating system, four alarms input, one alarm output as factory default, IP board is optional.
.Built-in zoom with 120 times(10x optical, 12x digital).
.Resolutions: Color: 530TVL, B&W: 570TVL; Min Illumination: color 3Lux.
.Pan 360°, Tilt 90°continuously rotation with auto-flip, humanize focus and speed proportion.
.128 presets(titles can be set), 4 tours; 8 programmable zones(titles can be set)
.Park action function, can auto-call presets or start-up tour, pattern, scan and display areas after dome is idle for a period of time.
.Screen will display pan/ tilt position, zoom etc.
.Communications: RS485
.IP66 all-day defend cover.
.Built-in 1500W lightning-proof, surge-proof and wave-proof.


Imaging element 1/3 Sony Exview HAD CCD
Significant pixel (H×V) 752(H)X582(V)
Resolution Color: 530TVL, B&W: 570TVL
Video output YPbPr,Female BNC ,1.0±0.2Vp-p
S/N ratio (S/N) ≥50dB
Illumination 3Lux(F1.4)
White balance Auto/manual(R/B gain control)
Back-compensation Off/auto
Focus 5.1mm ~51mm
Electron Shutter 1/2 ~ 1/10,000 s
Manual speed Pan(0.5°~160°/s);Tilt(0.5°~90°/s)
Preset speed 320°/s
Rotation Continuously 360°;tilt 0~90° with auto-flip
Speed Proportion As the length of focus, to auto-adjust the speed
Zoom Total zoom 120X(Optical 10X;Digital 12X )
Preset 128 preset, title can be edited
Auto-flip Tilt down 90°, with auto-flip 180°
Display zone 8 programmable zones with titles
Sync model Internal
Decoder Built-in
Remote controlling RS485
Baud rate (RS485) 2400/4800/9600/19200 bps
ID range 1~254
Temperature -30℃~50℃
Protection grade IP66, 1500w lightning-proof, surge-proof, all-day defend cover
Power supply AC 24V
Power consumption ﹤12W
weight 2.5Kg
Dome Dimension(L*W*H) 154X154X152.6 mm
