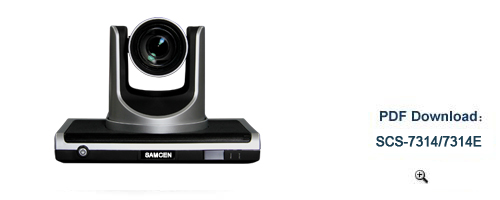

SCS-7314/7314E Video Conferencing Terminal

●All-in-one Design
All-in-one design, Camera + Video Conferencing System built-in-one device, simple to use. Support Wi-Fi(optional), support external microphone, small size, easy to install.
●72.5° Wide-angle Lens
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 32x digital zoom (optional).
●1080P Full HD
Built-in Full HD camera, the highest 1080p30+1080p5 or 2-way 720p30 stream, support 2 external video input and output.
●Base on Android
Restful API + Android runtime environment, support custom UI and third-part applications, the development of applications that can be deployed inside the terminal or external.
●Open SDK
Full open SDK, provides powerful media processing engine, support the development of third-party protocols and applications, easy to implement secondary development for customers.

Standard & Protocols
Standards and Protocols	ITU-T H.323, IETF SIP
Video Standards & Protocols	H.264BP, H.264HP
Audio Standards & Protocols	G.722.1C, AAC-LD, G.722, G.711A, G.711µ, G.726, SILK, G.722.1
Dual Stream	ITU-T H.239, BFCP
Other Standards	H.221, H.225, H.235, H.241, H.245, H.281, H.350, H.460, T.140, DTMF
Network Standards & Protocols	TCP/IP, DHCP, SSH, HTTP, HTTPS with SSL/TLS, RTP, RTCP, RFC3261, RFC3264, RFC2190, RFC3407, RFC2833, RFC4585(RTP/AVPF), SNTP, ARP
Video Specifications and Features
People Video Resolution	• 1080p@30fps from 1024Kbps • 720p@30fps from 512Kbps • 576p@30fps from 384Kbps • 488p@30fps from 256Kbps
Content Video Resolution	• Video Input: VGA (640x480)@60/72/75fps, SVGA (800x600)@56/60/72/75fps,XGA(1024x768)@60/70/75fps, WXGA (1280x768)@60fps, WXGA (1280x800)@60fps, 1280x960@60fps, SXGA (1280x1024)@60fps, 1360x768@60fps, 1366x768@60fps, 1440x900@60fps, 1600x900@60fps, 720p@60fps, 1080p@30fps • Video Output:1024x768, 1280x1024, 1280x720, 1920x1080 • Coding/Decoding Resolution: XGA(1024x768), SXGA(1280x1024), 1080I50, 1080P50,1080p60
Dual Stream	1080p@30fps + 1080p@5fps or Dual 720p@30fps
Built-in 1080p HD Camera	• Video input pixels: 1080p@30fps • Sensor: 2.07 mega effective pixel, 1/2.7-inch CMOS • Zoom: 12x optical zoom • Maximum horizontal angle: 72.5° horizontal field of view • Panning/Tilting angle: +/-170° pan, -30° ~ +90° tilt • Automatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF) • Far-end camera control • Upside-down mounting with automatic flipping of picture • Number of preset positions: 10
Other Video Features	• Support PIP, POP and other display models
Embedded MCU (Only for SCS-7314E)
MCU	4-point MCU (local site + 4 remote sites)
Audio Specifications and Features
Audio features	• Acoustic Echo Cancellation (AEC) • Automatic Gain Control (AGC) • Acoustic Noise Suppression (ANS) • Lip synchronization
Security and Stability
Network	• Forward Error Correction (FEC)
Security	• H.235 signaling and media stream encryption(AES-128、AES-192、AES-256) • TLS and SRTP • Administrator password, SSH/HTTPS
Firewall Traversal	H.460.18, H.460.19, H.460.23, H.460.24 firewall traversal
Bandwidth
IP	64kbps ~ 8Mbps
Interfaces
Audio Input	1 x 3.5mm line-in jack, 1 x 3.5mm mic-in jack
Audio Output	1 x 3.5mm line-out jack, 1 x HDMI audio output
Video Input	1 x Built-in Camera, 1 x DVI-I
Video Output	2 x HDMI
USB Interface	2 x USB2.0 Host
Network Interface	1 x RJ45: 10/100 Base-T
Application Features
Languages	Chinese, English
call records	Incoming、Exhalation
Special Features	• Upside-down mounting • PIP • Split output: Bi-screen and tri-screen display • Support SDK API
Physical Characteristics
Environmental Specification:	• Operating Temperature: 0°C to 40ºC • Support PIP, POP and other display modes • Operating Humidity: 10% to 80% • Non-Operating Humidity (Non-condensing): 0% to 95% • Peripheral noise: < 46 dBA SPL • Lowest luminance: 1 lux • Recommended luminance: > 300 Lux
Electrical	• Working voltage: AC 100V ~ 240V, DC 12V • Working frequency: 50/60Hz • Power consumption: 24W
Dimensions	• Codec dimensions (LxWxH): 239.4mm x 148.4mm x 157mm • Net weight: 1.75 kg
Approval and Compliance	CCC, CE, RoHS, FCC
Include Packages	1 x HD Codec Built-in 12x Zoom HD PTZ Camera 1 x Omni-array Microphone 1 x Remote Control 1 x AC Power Adapter 1 x AC Power Cable 1 x User Manual
* G.722.1/G.722.1C, licensed from Polycom®

Num	Interface	Function
1	MIC	XLRM audio input interface: Supports inputs of microphones with different interfaces, and the inputs of goose neck microphones with phantom power.
2	AUDIO	Audio input interface
3	AUDIO	Audio output interface
4	USB	USB 2.0 interface: used for accessing a USB device(Mouse,Keyboard,Micphone in,or more)
5	USB	USB 2.0 interface: used for accessing a USB device(Mouse,Keyboard,Micphone in,or more)
6	HDMI	HDMI output interface:Used for connecting display equipment,such as,monitor,projector,and more.
7	VGA	VGA output interface:Used for connecting display equipment,such as,monitor,projector,and more.
8	DVI	DVI output interface:Used for connecting display equipment,such as,monitor,projector,and more.
9	WAN	RJ-45 Ethernet interface:10/100M,to connect equipment to external internet networks. On the right is the connection Indicator light in green. If the indicator light is on,it indicates online connection,and if it is off,it indicates offline connection. On the left is the Ethernet interface data Tx/Rx Indicator light in yellow;The indicator light blinks when the Ethernet interface transmits and receives data,and goes out when the Ethernet interface does not transmit and receive data.
10	DC 12V	Power interface: power input +12V, 1.5A, through 110~240V DC source.
