- Especially designed for high-level meetings, such as Summits, congresses, conventions, parliaments and city councils
- Paperless Multimedia Congress Terminal - equipped with a 12.3" (1920x1080) HD TFT LCD touch panel, offerrng better paperless event experience including document reading, HD video watching, interactive meeting management (discussion, voting, 64 CHs x 2 interpretation) and meeting services
- Capacitive touch panel supporting multi-touch, convenient and efficient for operation
- All audio and video signals are transmitted via a Cat.6 Gigabit network cable. High performance and stability of the important data stream of the meeting, such as audio, voting information, and control information
- Microphone-array technology for SCS-12.3D series

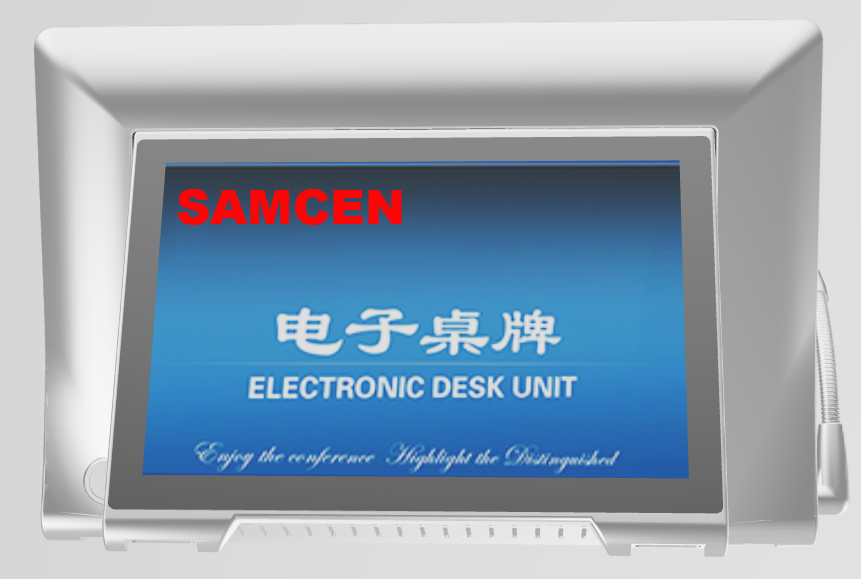

- E-ink nameplate can be connected
- 48 kHz audio sampling, 64 audio channels, each with a 30 Hz to 20 kHz frequency response for perfect sound quality
- Low power consumption design
- Supports Dante protocol to connect to peripheral digital devices without losing any sound quality
- Equipped with optical fiber interface to combine two widely separated conference rooms to form one unique coherent system
- Dual connection backup via optical fiber and Cat.5 cable between Congress Main Unit and Congress Extension Main Unit
- System power controllable by central control system
- Supports combining and separating conference rooms
- Booth combination & share system
- Connectable to multi channel audio input or output devices for versatile expansion of the system
- Connection facility for additional condenser or dynamic microphones, expanding user’s application spectrum
- Integrated USB interfaces in the Congress Main Unit for system upgrading and saving system parameters. Convenient for system maintenance
.
| Model | SCS-12.3C/D |
| Screen | |
| Screen Size | 12.3 inch IPS Retinal HD screen |
| View Angle | Horizontal viewing angle:0~170, vertical viewing humidity≥75% |
| Screen Ratio | 16:09 |
| LED Resolution | 1920×1080P |
| Touch Technology/Surface rigidity | Capacitive/ 7 level |
| Touch points/ Induction Strength | 10 points/<10g |
| Touch response Time | 5ms |
| LED Size | 376.5×211.7mm |
| Lifting | |
| Lifting Touch Mode/Time | Touch-tone or software control/ 10000 times |
| Lifting Time | 21.5S |
| Lifting Angle | Intelligent 45 degree |
| MIC | Yes |
| System | |
| Operation System | Windows 7 |
| Processor | INTEL 1037U/dual core /1.8G |
| Memory | 4G DDR3 |
| Hard Disk | SSD 64G |
| Network Card | Gigabit LAN |
| Input Interface | 1×Power,1×RS232 , 2×USB |
| Other | |
| Control | Center control,Remote control,Manual control |
| Installation | Open the hole |
| Color | Black or Silver |
| Operating Temperature | 0°C~50°C |
| Power Consumption | AC~220V/50Hz/80W |
| Weight | 2.5Kg |
| Panel size | 520×170.5×3.5mm |
| Chassis size | 500×157×620mm |
