1. Support HDMI，VGA, TV 3 kinds of Video Out
2. Support Onvif & Multi-Protocols
3. Digital zoom function in both preview & playback
4. Support Cloud network function (P2P:Plug&Play)
5. Advanced time bar playback function can make playback exact to a second
6. Support mobile surveillance
7. Support Built-in free DDNS
8. Support mobile hard disk backup
.

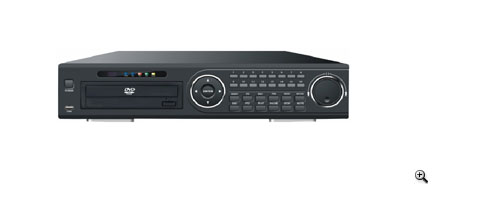

| Model NO.: | SCS-RD3016 |
| System | |
| Operation System | Embedded LINUX |
| Pentaplex function | Live monitoring, recording, playback, backup & remote access |
| Control Mode | Front panel, USB/Wireless mouse, IR remote control, Network |
| Video | |
| Input (IP Camera) | 16 * 720P, 16 * 960P, 16 * 1080P (160Mbps) （Support 3.0/5.0MP） |
| Standard | PAL / NTSC |
| Output | 1 CVBS, BNC (1.0Vp-p,75 ohms) |
| 1 HDMI, 1920×1080,1440×900,1280×1024,1024×768,800×600 | |
| 1 VGA,1920×1080,1440×900,1280×1024,1024×768,800×600 | |
| Audio | |
| Input | 8ch Network |
| Output | 1ch. RCA (Line out,2Vpp,300ohms) |
| Bidirectional Talk | 1ch. RCA |
| Recording | |
| Video Compression | H.264 / MPEG 4 AVC (up to Main Profile 5.0) |
| Audio Compression | G.711A, G.726 |
| Image Encoding | Adjustable encoding quality, variable code stream/fixed code stream |
| Dual Stream | Support |
| Resolution(NVR) | 5MP/3MP/1080P/960H/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Recording Mode | Manual, auto, motion detection, stop |
| Time bar | Support |
| Video Detection&Alarm | |
| Trigger Events | Recording, PTZ, Tour,Email |
| Motion Detection | 396 (22×18) detection zone, variable sensitivity levels |
| Capture | JPEG capture |
| Alarm In/Output | 8ch in, 3ch out |
| Playback&Backup | |
| Max Playback | 1~16ch(13*720P, 10*960P, 6*1080P @30FPS) |
| Backup Mode | USB,HDD,Network Backup,Mobile Harddisk |
| Network | |
| Ethernet | 1 RJ-45 (10M/100/1000M) |
| P2P | Support |
| Cloud Storage | Support |
| DDNS | Support Built-in Free DDNS |
| 3G Dongle | Support |
| Network protocol | TCP/IP, UDP, HTTP, RTP/RTSP |
| Network Functions | DHCP, PPPOE, DDNS,SMTP,SNTP,FTP,UPnP,P2P,3G |
| Remote Operation | Monitoring,PTZ control,playback,system setting,file download,log information |
| Smart Phone | iPhone,iPad,Android |
| Hard Disk | |
| Hard Disk | 4 SATA ports (8SATA is optional) (Max:8TB/HDD) |
| HDD Management | Hard disk hibernation technology, HDD faulty alarm&raid |
| Auxiliary Interface | |
| USB Interface | 2 USB 2.0 ports |
| E-SATA | 1 E-SATA |
| DVD RW | Optinal |
| Environment | |
| Power Supply | ATX Power (AC 110-240V) |
| Power Consumption | <20W (without HDD) |
| Working Environment | -10℃~＋55℃ / 10%－90%RH |
| Dimension(W*D*H) | Machine: 430x374x88mm Color Box:495x135x473mm |
| Weight | 6Kg (without HDD) |
| Installation | Desk type |
